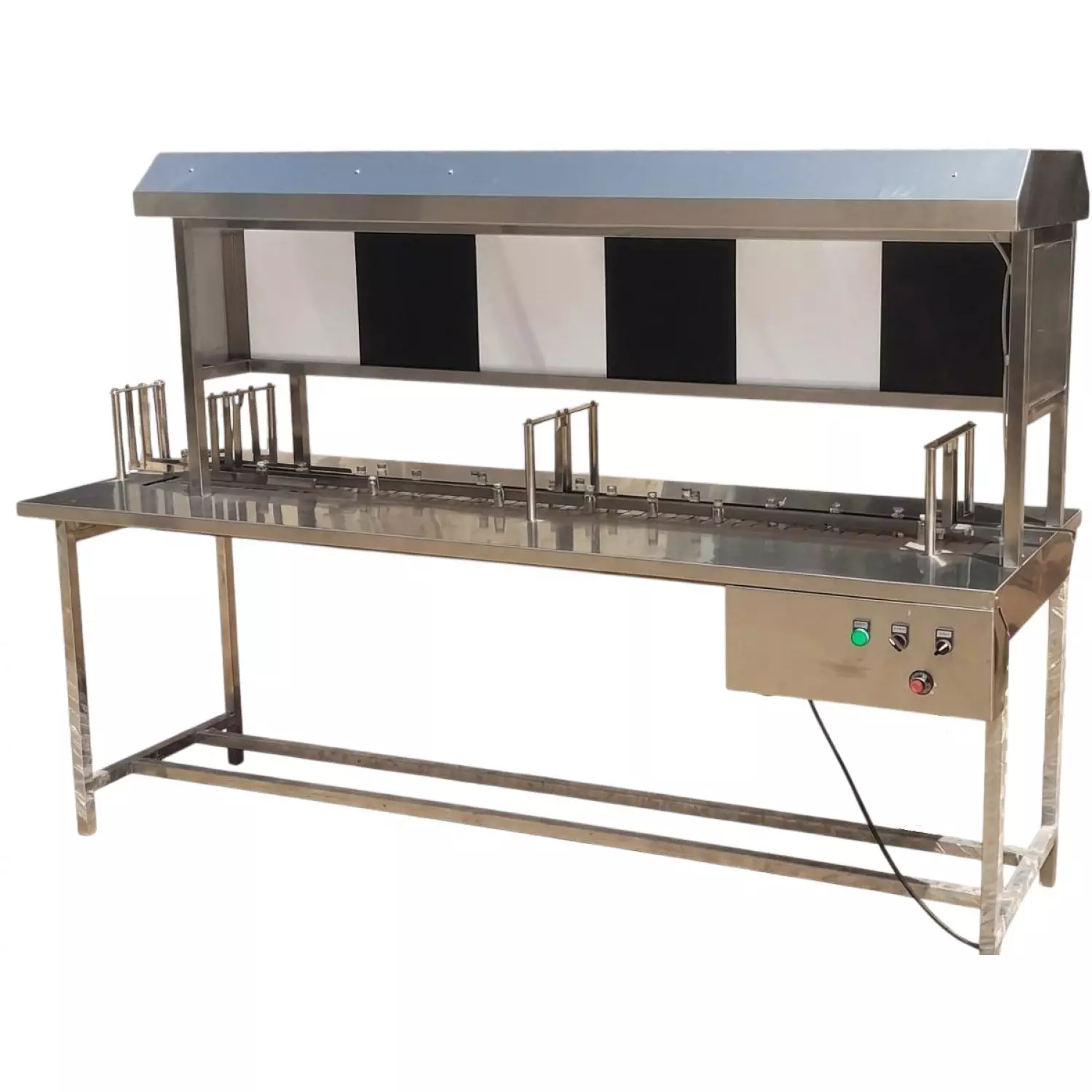

Bottle Inspection Conveyor(HEIC)
Bottle Inspection Conveyor(HEIC) Details
Technical Specifications
Model Type :- 5ft,6ft, 8ft. (As per require).
Output :- 80 to 150 Bottle per minute.
Bottle Size :-
- Dia22mm to 100mm.
- Height 58 =mm to 240mm.
Inspection Panel :- GMP-compliant, alternative black-and-white PVC visual background hood for the detection of small particles, cracks, or filling impurities.
Conveyor System :- Three track SSChain Conveyor with Guide adjustable height & Width.
Machine Elec. Supply :- 230V -1 Phase+ Neutral + Earthing.
Machine Structure :- SS 304
