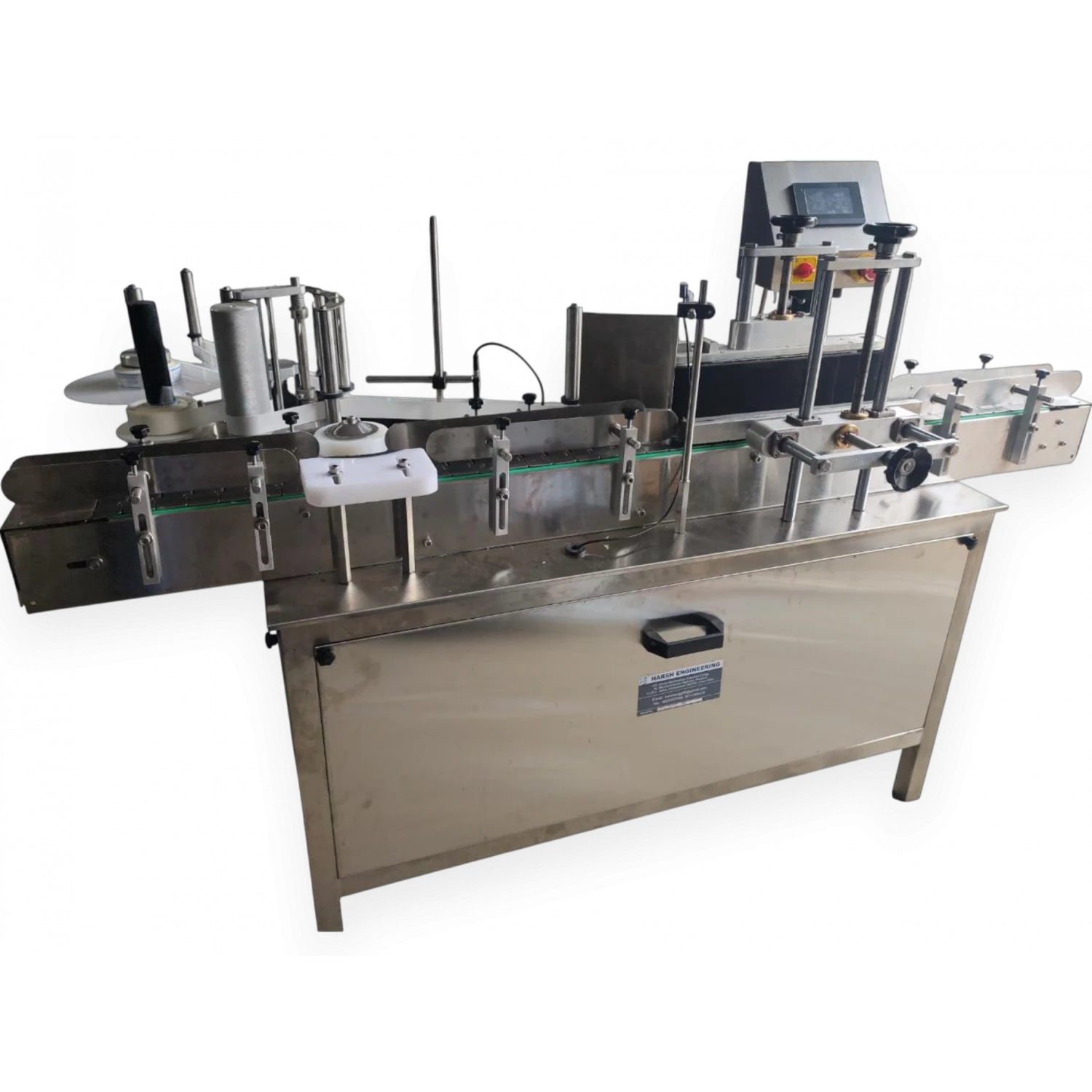

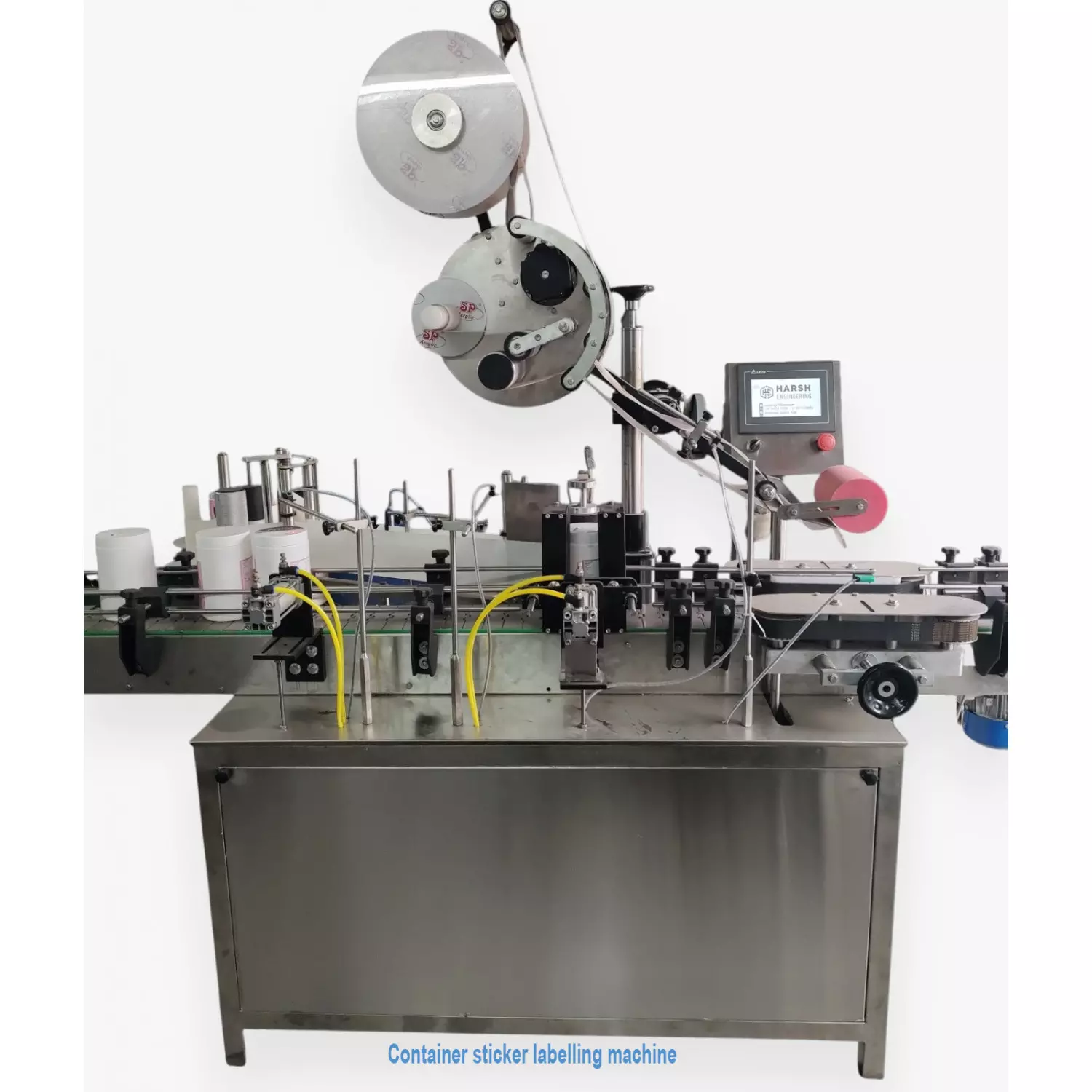

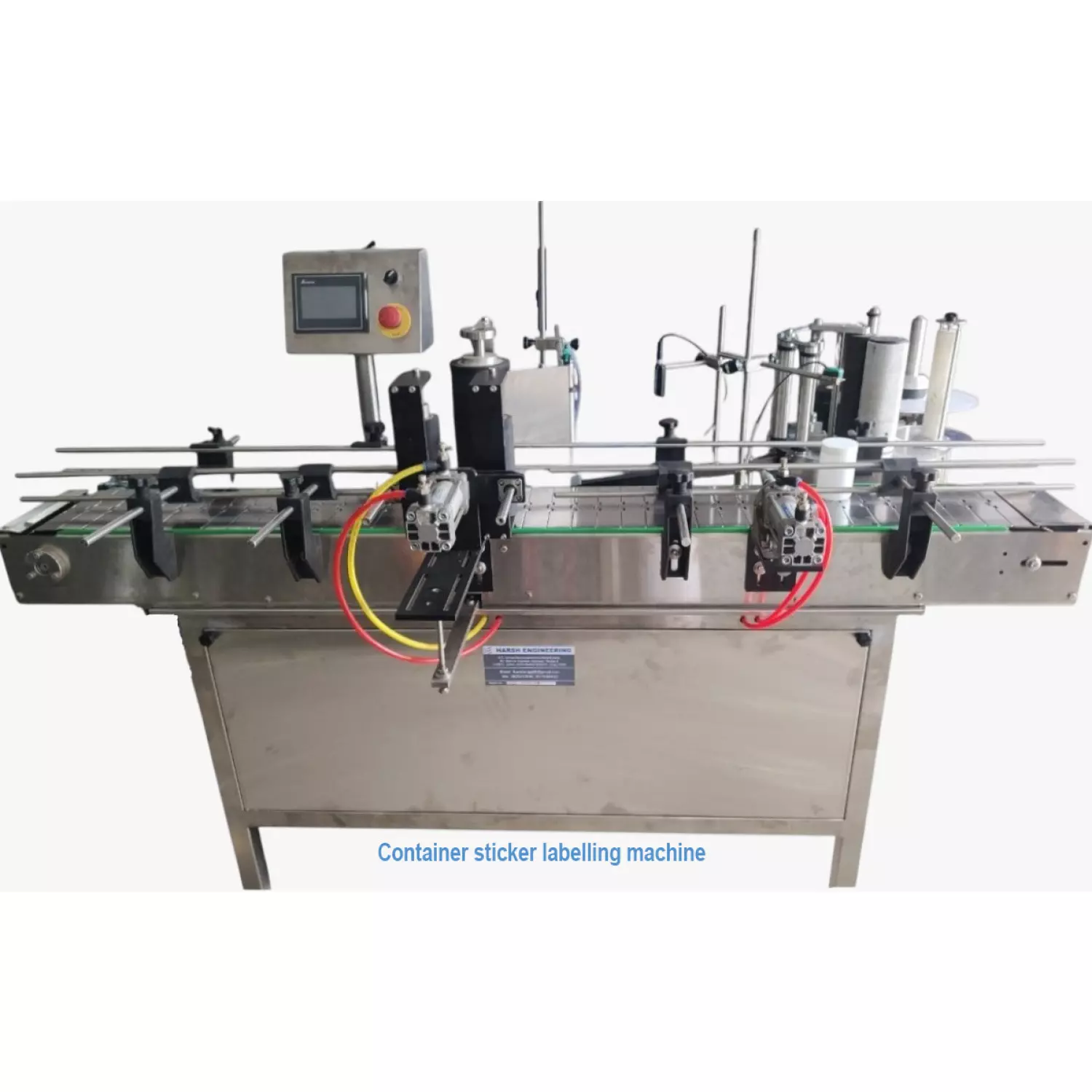

Automatic Sticker Labeling Machine (HESL)
Automatic Sticker Labeling Machine (HESL) Details
The appearance of a product often creates the first impression, and the label plays a big part in that. A properly applied label makes the product look organised while displaying important information clearly. We manufacture the Automatic Sticker Labeling Machine (HESL) for businesses that need accurate side sticker labeling with continuous production. Manufactured in Ahmedabad, Gujarat, this machine is supplied to pharmaceutical, cosmetic, food, beverage, chemical, personal care, and allied industries across India.
The machine is designed for automatic side sticker application on different types of bottles and containers. Its servo-driven labeling system and PLC-based automation help maintain consistent labeling performance while reducing manual intervention during production.
Designed for Accurate Side Sticker Labeling
The HESL series is suitable for applying side stickers on glass, plastic, PET, aluminium, and tin bottles as well as various containers. It supports different bottle sizes and works with label lengths from 30 mm to 180 mm and widths from 16 mm to 150 mm. This flexibility allows manufacturers to use the same machine for multiple packaging formats.
With an output capacity of 3000 to 4800 containers per hour, the machine is suitable for medium and high-volume production lines where consistent label placement is important.
Technical Specifications
| Specification | HESL-80 |
|---|---|
| Output Per Hour* | 3000 – 4800 Bottles / Containers |
| Bottle Size | As Per Bottle Size |
| Label Position | Side Sticker |
| Label Size | Length: 30 mm to 180 mm Width: 16 mm to 150 mm |
| Sticker Roll Motor | Servo Driven |
| Drive | VFD AC Drive |
| Conveyor Direction | Left to Right Movement |
| Control Panel | PLC Based Automation |
| Power Supply | 230V – 1 Phase + Neutral + Earthing |
| Electrical Load | 2 kW |
Machine Features
- Automatic side sticker labeling system.
- Suitable for different bottle and container sizes.
- Servo-driven sticker roll mechanism.
- PLC-based automation for convenient machine operation.
- No label data input or retrieval programming required for different label sizes.
- Suitable for glass, plastic, PET, aluminium, tin bottles, and containers.
- SS 304 machine structure.
- GMP model design.
- VFD AC drive for smooth conveyor movement.
- Designed for continuous industrial production.
Suitable for Different Packaging Lines
Many manufacturers produce products in different bottle shapes and label sizes. This machine is designed to handle such variations without making the labeling process difficult. The servo-driven labeling system helps maintain stable label application, while the PLC automation supports smooth machine operation throughout production.
The GMP model design and SS 304 construction make the machine suitable for industries where clean production environments are important. It can also be integrated with automatic filling machines, capping machines, bottle turntables, and conveyors to create a complete packaging line.
Applications
- Pharmaceutical Bottles
- Cosmetic Products
- Food & Beverage Products
- Chemical Products
- Personal Care Products
- Herbal & Ayurvedic Products
- PET, Glass, Aluminium, Tin Bottles and Containers
Why Choose Our Automatic Sticker Labeling Machine?
- Suitable for automatic side sticker labeling.
- Supports multiple bottle and label sizes.
- Servo-driven labeling for stable performance.
- PLC-based automation with simple operation.
- Compact machine for easy installation.
- Easy integration with complete packaging lines.
- Manufactured using quality-tested components.
Automatic Sticker Labeling Machine Manufacturer in Ahmedabad, Gujarat
We manufacture and supply Automatic Sticker Labeling Machine (HESL) from Ahmedabad, Gujarat, for customers across India. Every machine is assembled, inspected, and tested before dispatch so it performs reliably in daily production. If you're looking for an automatic side sticker labeling machine for bottles or containers, we're ready to provide a solution that matches your packaging requirements.
